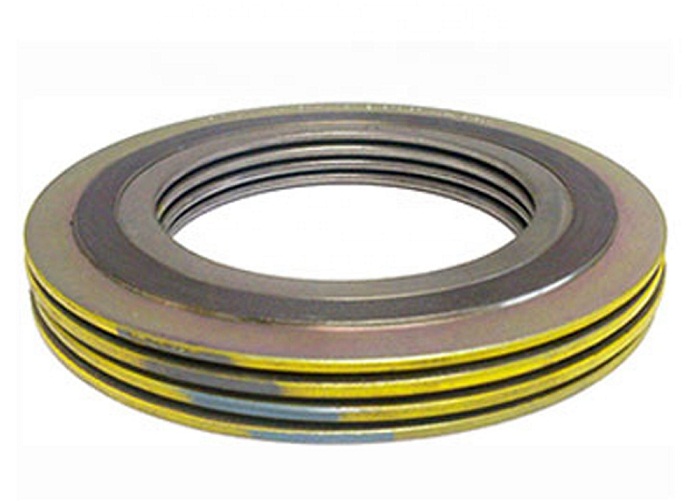

CGI Style Spiral Wound Gasket With Flexible Graphite Filler, Outer
Ring and Inner Ring as per ASME/DIN/JS/GB standard

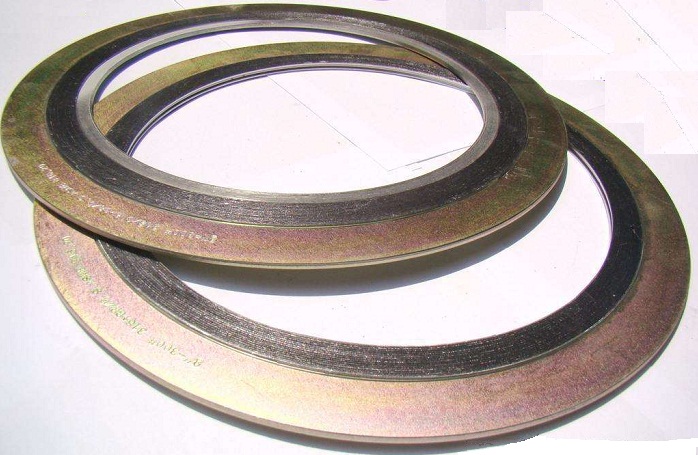

Basic type spiral wound gasket
• Pre-press forming metal corrugated belt and non-metal belt
alternately overlap,spiral
wound made.Also according to the conditions required to add
reinforced ring.Ba
sic type spiral wound gasket
| Material | stainless steel(304,304L,316L,321,310,347)CRS,Alloy 20,Hastelloy
b2,Hastelloy C 276,Incoloy 800,Inconel 600,Inconel*750,Monel
400,Nickel 200,Titannium) |
| Non-metallic materials | Graphite,PTFE,Ceramic,Mica Graphite |
| Thickness | As per customer’s requirement |
| Payment | D/P,T/T,Western Union |
| Lead time | 7days after sample confirmed |
| Type | basic,inner ring,outer ring,inner and outer ring |
| Certification: | ISO9001; CE; BV;API |
| Our Seivice | The delivery time and the technical services of the customer
requirement arrive ahead of the scheduled time.
Even its in the midnight, if the customer need a small o-ring, it
will be send regardless of the cost.
It only complete 50% of the sales when the installation finished.
Stability of the product in use will be concerned after the
installation, whether the product is stable in the operation
process.
24 hours service will be followed if there is any question.
In the first period whether its customer’s mistake or own’s
mistake, solve the problem firstly.
We can do technical transformation for the unreasonable seal. |
Structure
Main product
Spiral wound gaskets — made with an alternating combination of formedmetal wire and
soft fillermaterials — form avery effective seal when compressed
between two flanges.A V-shaped crown centered in the metal strip
acts as a spring, giving the gaskets greater resiliency under
varying conditions. Filler and wire material can be changed to
accommodate different chemical compatibility requirements. If the
load available to compress a gasket is limited, gasket construction
and dimensions can be altered to provide an effective seal. It can withstand high temperature, high pressure and adapt to
ultra-low temperature or vacuum conditions. By changing the
material combination of the gasket, it can solve the chemical
corrosion problem of various media on the gasket. Its structural
density can be made according to different locking force
requirements. To strengthen the main body and accurate positioning,
the spiral wound gasket is equipped with a metal inner
reinforcement ring and an outer positioning ring. The inner and
outer steel rings are used to control the maximum compression
degree, and the surface accuracy of the flange sealing surface
contacted by the gasket is not high.
A spiral wound gasket may include a centering ring, an inner ring
or both. The outer centering ring accurately positions the gasket
within the flange and acts as a compression limiter, while the
inner ring provides additional radial strength. The inner ring also
reducesflange erosion and protects the sealing element.
Resiliency and strength make spiral woundgaskets an ideal choice
under a variety of conditions and applications. Widely used
throughout refineries and chemical processing plants, spiral wound
gaskets are also effective for power generation, aerospace, and a
variety of valve and specialty applications.
The ASME B16.20 gasket specification has been updated and changed
to a new recommended standard. The new criteria incorporates a
default to inner rings in all graphite-filled spiral wound gaskets
unless the purchaser specifies otherwise. However, a
graphite-filled spiral wound gasketwithout an inner ring will still
be stamped with and in compliance to the ASME B16.20 standard.
Style CG
General purpose gasket suitable for flat face and raised face
flanges up to Class 2500
Centering ring accurately locates the gasket on the flange face,
provides additional radial strength, and acts as a compression
limiter
Spiral winding (sealing element) consists of pre-formed metal and
soft filler material
NOTE: An inner ring is recommended for applications above Class
600, due to the high available bolt load. See Style RWI.
Style CGI
Suitable for flat face and raised face flanges up to Class 2500
Recommended for higher pressure applications, for use with PTFE
fillers, and when delineated by ASME B16.20
Inner ring acts as a compression limiter and protects sealing
elements from process media attack
Style R
Suitable for tongue and groove, male-female, or groove-to-flat face
flanges
Spiral winding only, containing preformed metal and soft filler
material
Inner and outer diameters of winding are reinforced with several
plies of metal without filler to give greater stability
NOTE: Also available with inner rings Style RI.
MC and MCR Gaskets
For Manhole Cover Assemblies

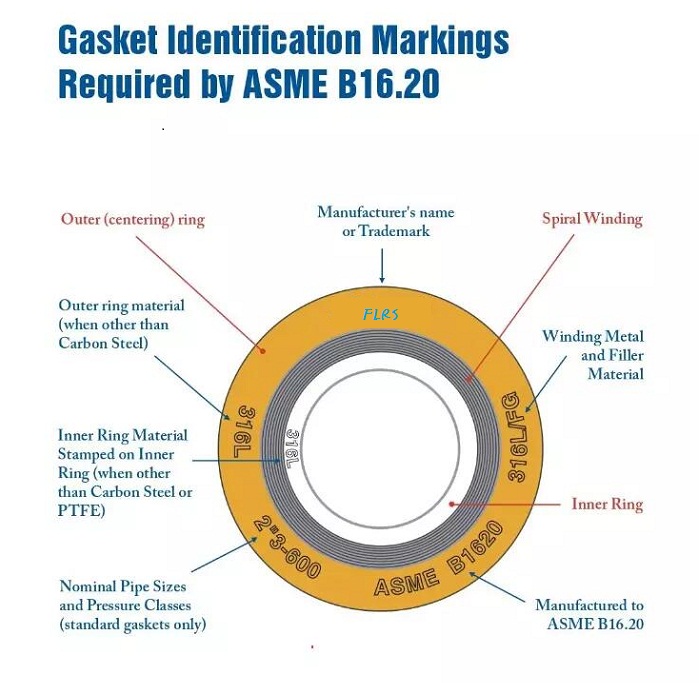

Marking and color coding
