Continuous Thread Studs Coarse Teeth / Staninless Steel ASTM A193 B8 Stud Bolts

ASME/ANSI B18.31.2 Continuous Thread Studs Coarse Teeth / Staninless Steel ASTM A193 B8 Stud Bolts

In manufacturing, a metal stud is a strong bolt used in the construction of buildings, motors or production equipment. A threaded stud is a stolen bolt, usually with threads on both sides. Such bolts are screwed into a metal surface and placed between two objects. The object is secured with a nut in the adjacent threaded area of the bolt. Threaded studs are stronger than regular bolts because they are forged and cast as a solid metal unit.

Drawing:

Size:

d	1/4	5/16	3/8	7/16	1/2	9/16	5/8	3/4	7/8	1	1-1/8
p	20	18	16	14	13	12	11	10	9	8	7
emax	0.1	0.111	0.125	0.143	0.154	0.167	0.182	0.2	0.222	0.25	0.286

d	1-1/4	1-3/8	1-1/2	1-3/4	2	2-1/4	2-1/2	2-3/4	3	3-1/4	3-1/2	3-3/4	4
p	7	6	6	5	4.5	4.5	4	4	4	4	4	4	4
e max	0.286	0.333	0.333	0.4	0.444	0.444	0.5	0.5	0.5	0.5	0.5	0.5	0.5

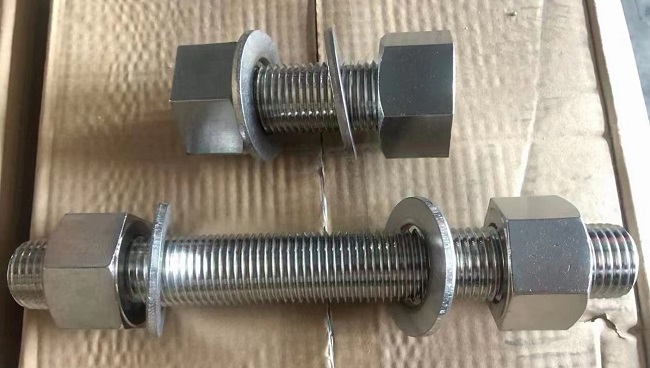

Photos:

Material:

ASTM A193 / A193M-2020

Alloy-Steel and Stainless Steel Bolting for High Temperature or High Pressure Service and Other Special Purpose Applications

A193 B8 Class 1D (%)

Chemical	C	Si	Mn	P	S	Cr	Ni
min	-	-	-	-	-	18	8
max	0.08	1	2	0.045	0.03	20	11

Mechanical properties:

Heat treatment	σ_b	σ_s	δ	ψ	HBW
Heat treatment	Mpa	Mpa	%	%
Solid solution	≥515	≥205	≥30	≥50	≤223
